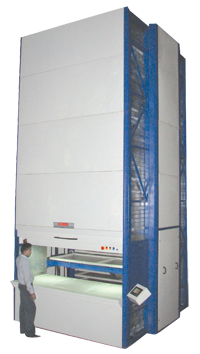

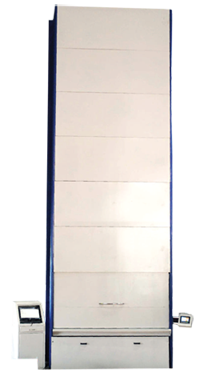

  Stolift - Modular Automated Storage & Retrieval System (Shuttle)

We are glad to introduce our new achievement of Stolift:

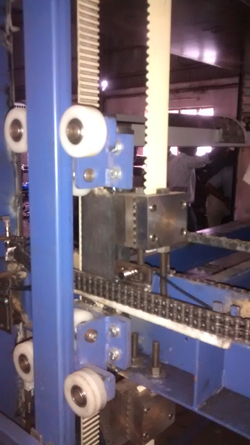

  • We offer 2 varieties - one with Timer Belt & second with Chain. We feel proud that we are the Organisation who offer both models.
  • Prevoiusly we use to offer 75mm Flexo pitch with our continious development & effort to give more advanced features, now we offer Flexo at 25mm pitch with minimum tray distance 75mm.
  • Additional optional feature such as Auto door & additional Extractor to make tray open to sky.



Space magnum : Stolift - Modular Automated Storage & Retrieval System (Shuttle) This type of storage system is a recent development combining advantages of several other systems. It is compact, sturdy and ensures fast retrieval.

The concept

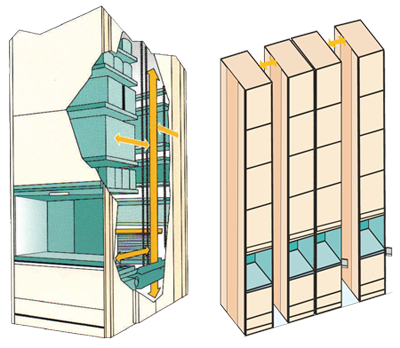

It is an advanced and powerful storage system provided with sophisticated PLC controller and yet very easy to operate. PLC controlled platform brings special material carriers from the control station to a particular storage location & vice-versa.

At the operating window, material can be placed on to the retriever tray. When its location / part number is entered, it will be automatically placed at the pre-determined location in the storage rack. For material retrieval, entering the part number activates the retriever, which reaches the designated rack and retrieves it to the operating window. Very simple and very fast.


Where to use?
The system is ideal for mid-sized and mid-weight components / items / parts which need safe storage, fast retrieval and precision inventory control. And also, the height utilisation is possible and required.

Advantage over vertical carousel system
No load imbalance
Pitch of trays can be altered and is flexible
Multiple pitches can be provided
Fixed pitch or optimized pitch (Machine automatically allocates space, considering the component height)
Flexo at 25mm to 700mm pitch
Machine height can be increased at a later date
Power consumption is very less compared to vertical carousel
Capacity can be increased at a later date
No vibration or jerks during the operation
Machine capacity is designed for 20 Tonne and 40 Tonne
Material can be taken out from the machine along with the trays
Further automation is possible for transferring of materials through material handling systems
Bar code scanner can be connected externally to the machine
Material can be accessed from the top (easy accessibility)
Auto door provided
Work table weight carrying capacity facility available

Space magnum : Stolift - Modular Automated Storage & Retrieval System (Shuttle)Benifits
Quick Retrieval
Since only the retriever moves to locate and retrieve tray / material, the speed can be higher, ensuring fast retrieval.

Food Space Saving
Floor space can be saved to a great extent (40%) since the entire available height is being used and even the operating windows can be provided at 2 or 3 different levels.

High Saftey of Material
Material is stored in completely enclosed racks, ensuring safety from theft, dust, mishandling or damage.

Manpower Saving
Due to complete automation and speedy retrieval, manpower is saved to a considerable extent.


Inventory Control
Material is retrieved only after entering the part number & quantity and hence, precise control on the inventory can be achieved.


Space magnum : Stolift - Modular Automated Storage & Retrieval System (Shuttle) benifits

Tray Size
Tray Capacity
Tray Size
Tray Capacity
620 x 1220 250Kg / 500Kg. 825 x 1220 250Kg / 500Kg.
1550 250Kg / 500Kg. 1550 250Kg / 500Kg.
1850 250Kg / 500Kg. 1850 250Kg / 500Kg.
2150 250Kg / 500Kg. 2150 250Kg / 500Kg.
2440 250Kg / 500Kg. 2440 250Kg / 500Kg.
2750 250Kg / 500Kg. 2750 250Kg / 500Kg.
2950 250Kg / 500Kg. 2950 250Kg / 500Kg.
Machine Height depends on your "Ceiling Height" & Tray Quantity depends on the "Material Height", and Flexo at 75mm (min. 150mm)


Space magnum : Stolift - Modular Automated Storage & Retrieval System (Shuttle) Trays with plastic boxces, Trays with moduler side walls , partitions, and dividers, Trays with Euro pallets, Trays with moduler side walls and plain partitions, trays with a tool holder system.
